MSI B650 Gaming Plus WIFI Motherboard( B650-GAMING-PLUS-WIFI)
Features:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for a high-performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High-Quality PCB: 6-layer PCB made of 2oz thickened copper
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
₹18,500
Compare
MSI B650 Gaming Plus WIFI Motherboard( B650-GAMING-PLUS-WIFI)
Unlock your gaming potential with the MSI B650 Gaming Plus WIFI Motherboard. Get it now for seamless performance. Buy now and elevate your game!
Features of MSI B650 Gaming Plus WIFI Motherboard
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for a high-performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High-Quality PCB: 6-layer PCB made of 2oz thickened copper
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Specification of MSI B650 Gaming Plus WIFI Motherboard
Model | B650 GAMING PLUS WIFI |
Chipset | AMD B650 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz |
EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Multi-GPU | AMD MULTI-GPU Support |
Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB |
|
LAN | Realtek® 8125BG 2.5G LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3 |
Audio | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio MSI B650 Gaming Plus WIFI Motherboard |
Internal I/O |
|
LED FEATURE | 4x EZ Debug LED MSI B650 Gaming Plus WIFI Motherboard |

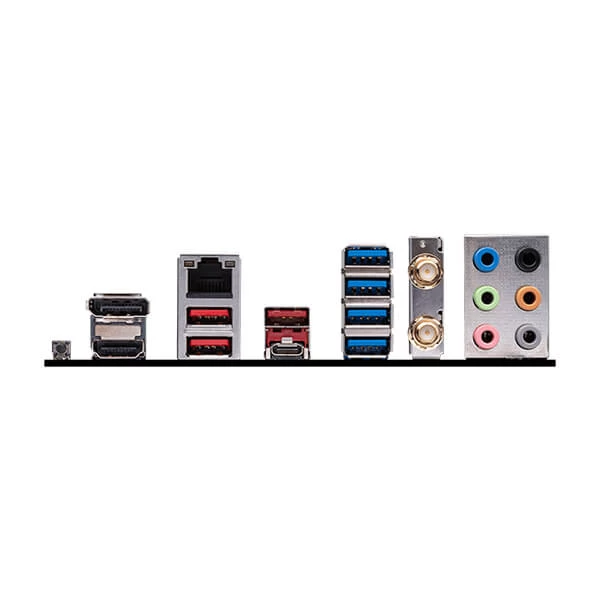

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension (W × L) | ATX MSI B650 Gaming Plus WIFI Motherboard 243.84mmx304.8mm |
Warranty | 3 Years MSI B650 Gaming Plus WIFI Motherboard |
Note | *** Features, Prices, and Specifications are subject to change without notice. |
