AMD Motherboards
MSI PRO X670-P WIFI AM5 DDR5 MOTHERBOARD (PRO X670-P WIFI)
Msi Pro X670-P Wifi Am5 Ddr5 Motherboard (PRO X670-P WIFI)
₹31,300
Compare
| CPU Support | AMD AM5 |
|---|---|
| Max Memory Support | 128GB |
| Memory Support | DDR5 |
| Form Factor | ATX |
| Brands | Msi |
Msi Pro X670-P Wifi Am5 Ddr5 Motherboard (PRO X670-P WIFI)
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Manufacturer Part Number | PRO X670-P WIFI |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD® X670 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | ATX |
| Memory | 4 x DDR5, Maximum Memory Capacity 128GB |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Wireless LAN | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth® 5.2 MSI PRO X670-P WIFI AM5 DDR5 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 4 x M.2 slot MSI PRO X670-P WIFI AM5 DDR5 6 x SATA 6G port |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |

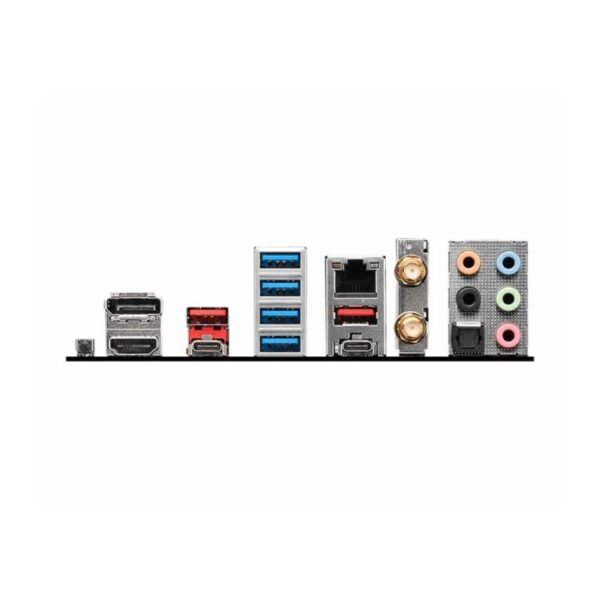

| I/O Rear | DisplayPort MSI PRO X670-P WIFI AM5 DDR5 USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) S/PDIF-OUT |
| Expansion Slot | 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) |
| USB (front) | 4 x USB 2.0 ports MSI PRO X670-P WIFI AM5 DDR5 1 x USB 3.2 Gen2 Type C ports 4 x USB 3.2 Gen1 Type A ports |
| USB (rear) | 4 x USB 3.2 Gen1 Type A ports 2 x USB 3.2 Gen2 Type A ports 1 x USB 3.2 Gen2 Type C ports 1 x USB 3.2 Gen2x2 Type C ports |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |
| Dimensions | 9.60″ x 12.00″ MSI PRO X670-P WIFI AM5 DDR5 |
| Warranty | 3 Years MSI PRO X670-P WIFI AM5 DDR5 |
| Note** | **Prices, Specifications & Features are subject to change without notice |
