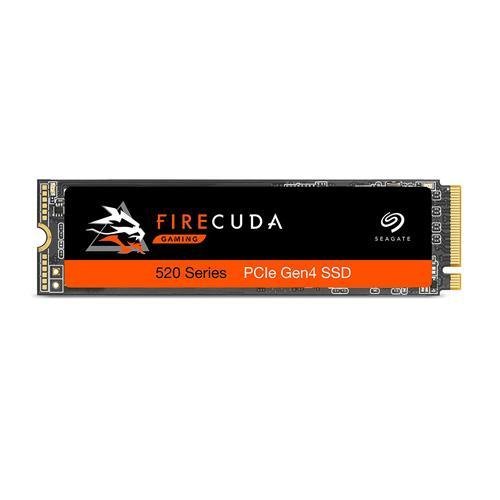

Seagate Firecuda 520 500GB NVMe PCIe X4 Gen4 SSD ZP500GM30002
Best-Fit Applications
Seagate Firecuda 520 500GB NVMe PCIe X4 Gen4 SSD ZP500GM30002
- Creative professional systems
- High-performance PCs and workstations
| Weight | 0.1 kg |
|---|---|
| Brand | Seagate SSD |
| Capacity | 500 GB SSD |
| Interface | NVMe SSD Gen 4 |
| Max Sequential Read | Up to 5000 MBps |
| Max Sequential Write | Up to 2500 MBps |
| User Type | Consumer SSD |
| Warranty | 5 Years |
Seagate Firecuda 520 500GB NVMe PCIe X4 Gen4 SSD ZP500GM30002
Overview of Seagate Firecuda 520 500GB
Seagate FireCuda 520 SSD with PCIe Gen4 ×4 interface is our fastest solid state drive — nearly 45% faster sequential reads/writes than the previous generation. It provides plug-and-play compatibility with all PCIe 4.0 motherboards, and delivers an extreme boost in performance with the latest 3D TLC NAND technology. Upgrading to the FireCuda 520 unlocks Gen4 speed and supplies up to 9× faster sequential reads than SATA SSDs.
- Take advantage of up to 45% more speed than Gen3 M.2 NVMe™ and up to 9×faster sequential reads than SATA SSDs.
- Utilise an E16 controller that is fully aligned with AMD X570 chipset motherboardsand able to reach up to 5 GB/s reads/4.4 GB/s writes.
- Easily upgrade to a drive that’s compatible with Gen4 motherboards and fullybackwards compatible with all PCIe 3.0 platforms.
- Enjoy the latest NAND technology, which provides the most advanced speed anddurability for your money.
- Choose from multiple capacities (up to 2 TB), and store your gaming library on yourboot drive.
- Download our free SeaTools™ SSD software to take advantage of drive performancereporting, S.M.A.R.T. attributes, health monitoring, firmware updates, diagnostics,managing logs — and multiple gamer theme options.
Specification of Seagate Firecuda 520 500GB
| Standard Model (TCG Pyrite) | ZP500GM30002 |
| Interface | PCIe Gen4 ×4, NVMe 1.3 |
| NAND Flash Memory | 3D TLC |
| Form Factor | M.2 2280-D2 |
| Performance | |
| Sequential Read (Max, MB/s), 128KB1 | 5,000 |
| Sequential Write (Max, MB/s), 128KB1 | 2,500 |
| Random Read (Max, IOPS), 4KB QD32 T81 | 4,30,000 |
| Random Write (Max, IOPS), 4KB QD32 T81 | 6,30,000 |
| Endurance/Reliability | |
| Total Bytes Written (TB) | 850 |
| Mean Time Between Failures (MTBF, hours) | 18,00,000 |
| Warranty, Limited (years) | 5 |
| Power Management | |
| Active Power, Average (W) | 4.6 |
| Idle Power PS3, Average (mW) | 12 |
| Low Power L1.2 mode (mW) | 2 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0 to 70 |
| Temperature, Non-operating (°C) | –40 to 85 |
| Shock, Non-operating: 0.5 ms (Gs) | 1,500 |
| Special Features | |
| TRIM | Yes |
| S.M.A.R.T. | Yes |
| Halogen-free | Yes |
| RoHS compliance | Yes |
| Physical | |
| Length (mm/in, max) | 80.15 mm/3.156 in |
| Width (mm/in, max) | 22.15 mm/0.872 in |
| Height (mm/in, max) | 3.58 mm/0.140 in |
| Weight (lb/g) | 8.0 g/0.017 lb |
